Circuit Breakers Explained: Stopping One Slow Service From Taking Down Everything

A single slow dependency shouldn’t be able to take down your whole system, but without a circuit breaker, it usually can. Here’s the pattern that stops it, and where it fits alongside timeouts and retries.

The failure mode circuit breakers exist to stop

Picture a checkout service that calls a payment provider’s API. Under normal conditions, calls complete in 200ms. Then the payment provider has an incident: calls now take 30 seconds before timing out, or they fail outright.

Without a circuit breaker, every incoming checkout request still tries to call the payment API, and every one of those calls ties up a thread, a connection pool slot, or an event loop tick for the full 30-second timeout. If your checkout service has a fixed pool of 50 worker threads and requests keep arriving faster than they time out, that pool fills up entirely. New checkout requests, including ones that have nothing to do with payments, start queueing behind requests that are guaranteed to fail. The checkout service now looks down to everything upstream of it, even though the actual failure is one dependency away.

That’s the cascading failure a circuit breaker exists to prevent: contain a downstream failure to the thing that’s actually failing, instead of letting it propagate through every caller in the chain.

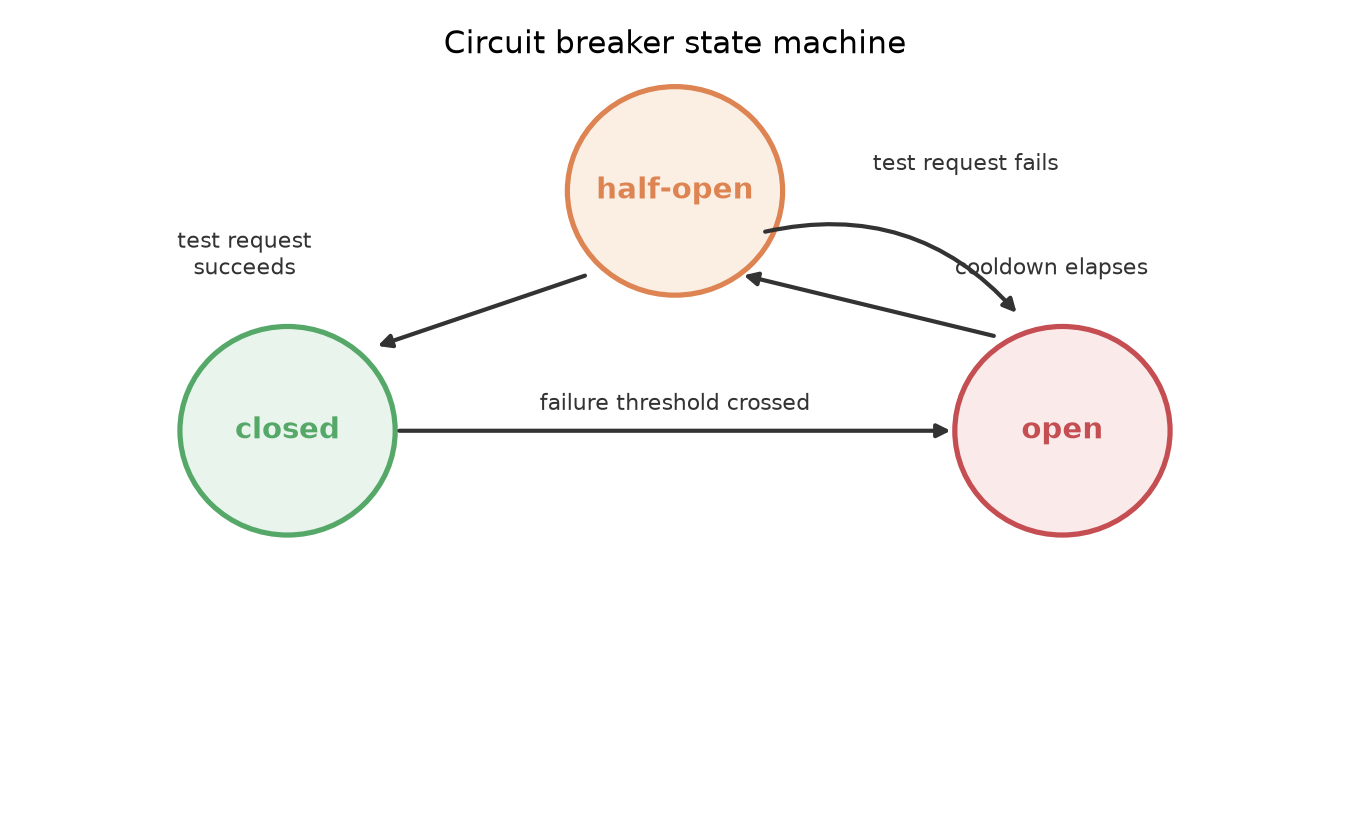

The three states

Closed is the default, healthy state. Requests pass through to the dependency normally. The breaker counts recent failures in the background, usually as a rolling percentage over a sliding window of requests, not a raw count.

Open is what happens once failures cross a configured threshold. The breaker stops forwarding calls to the dependency entirely. Instead of waiting out a timeout on every request, calls fail immediately, typically returning a cached value, a sensible default, or an explicit error the caller can handle right away. This is the core value: fast, predictable failure instead of slow, resource-consuming failure.

Half-open is the recovery probe. After a cooldown period, the breaker lets a small number of requests through as a test. If they succeed, the breaker closes and resumes normal traffic. If they fail, it reopens and waits another cooldown before trying again. This prevents two bad outcomes: staying open forever after the dependency has actually recovered, and flooding a barely-recovered dependency with full traffic the moment it shows a sign of life.

A minimal implementation

Most teams shouldn’t hand-roll this in production, but seeing the logic explicitly makes the state machine concrete:

class CircuitBreaker {
  constructor(fn, { failureThreshold = 0.5, windowSize = 20, cooldownMs = 30000 } = {}) {
    this.fn = fn;
    this.failureThreshold = failureThreshold;
    this.windowSize = windowSize;
    this.cooldownMs = cooldownMs;
    this.state = "closed";
    this.results = [];
    this.openedAt = null;
  }

  async call(...args) {
    if (this.state === "open") {
      if (Date.now() - this.openedAt < this.cooldownMs) {
        throw new Error("Circuit open: failing fast");
      }
      this.state = "half-open";
    }

    try {
      const result = await this.fn(...args);
      this._recordResult(true);
      if (this.state === "half-open") this._close();
      return result;
    } catch (err) {
      this._recordResult(false);
      if (this.state === "half-open") this._open();
      else if (this._failureRate() >= this.failureThreshold) this._open();
      throw err;
    }
  }

  _recordResult(success) {
    this.results.push(success);
    if (this.results.length > this.windowSize) this.results.shift();
  }

  _failureRate() {
    if (this.results.length < this.windowSize) return 0;
    const failures = this.results.filter((r) => !r).length;
    return failures / this.results.length;
  }

  _open() {
    this.state = "open";
    this.openedAt = Date.now();
    this.results = [];
  }

  _close() {
    this.state = "closed";
    this.results = [];
  }
}

This covers the state machine, but production libraries add things this sketch skips: per-endpoint isolation (a breaker per dependency, not one global breaker), metrics and alerting hooks, configurable fallback behavior, and thread-safe counters under concurrent load. That’s the gap between “understands the pattern” and “safe to run in production.”

Circuit breakers, timeouts, and retries are not the same thing

These three patterns get grouped together because they all show up in the same resilience conversation, but they solve distinct problems, and skipping one doesn’t get compensated by the others.

Pattern	Solves	Doesn’t solve
Timeout	Bounds how long you wait for one call	Repeated calls to a dead dependency
Retry	Recovers from a single transient blip	Sustained outages: retries alone amplify load on a struggling dependency
Circuit breaker	Stops sustained failure from cascading upstream	A single flaky call, since it needs a failure pattern to trip

A retry without a circuit breaker against a genuinely down dependency is actively harmful: it multiplies the request volume hitting an already-failing system, which is the opposite of what you want during an incident. The three patterns are complementary. A well-built HTTP client wraps a call in a timeout, adds retry with backoff for transient errors, and wraps the whole thing in a circuit breaker that trips on sustained failure. Skipping the breaker is the most common gap, because timeouts and retries are the ones people reach for first and circuit breakers only prove their value during an incident, when it’s too late to add one.

Where this fits in a real system

Circuit breakers matter most at service boundaries: calls to third-party APIs, calls between your own microservices, and database connections under sustained load. If you’re running a service mesh (Istio, Linkerd), circuit breaking can be applied at the network layer with configuration rather than application code, which is worth evaluating before writing custom logic per service. If you’re not on a mesh, library-level breakers (resilience4j, Polly, opossum, or equivalents in your stack) are the right level of effort for most teams.

This pattern shows up constantly in the kind of production incidents that get post-mortemed after the fact, alongside migration and rollout failures covered in our zero-downtime database migration guide: a dependency degrades, nothing contains the blast radius, and an isolated problem becomes a system-wide one. Adding a circuit breaker to your critical external calls is a small amount of code for a failure mode that’s cheap to prevent and expensive to debug live.

Don’t wait for the incident to add one. Wrap your riskiest external dependency in a circuit breaker this week, watch how often it actually trips, and tune the threshold from what you observe.
